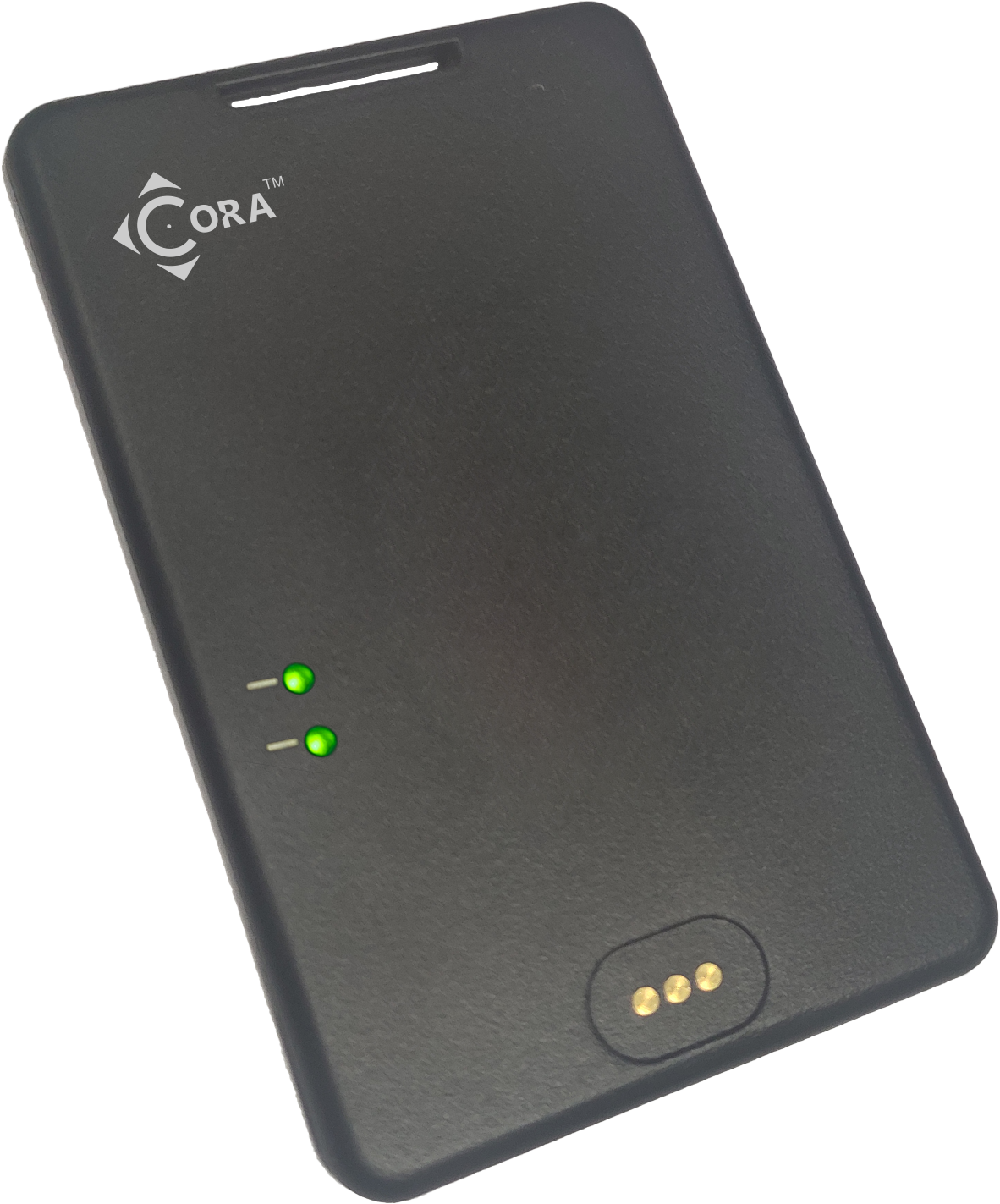

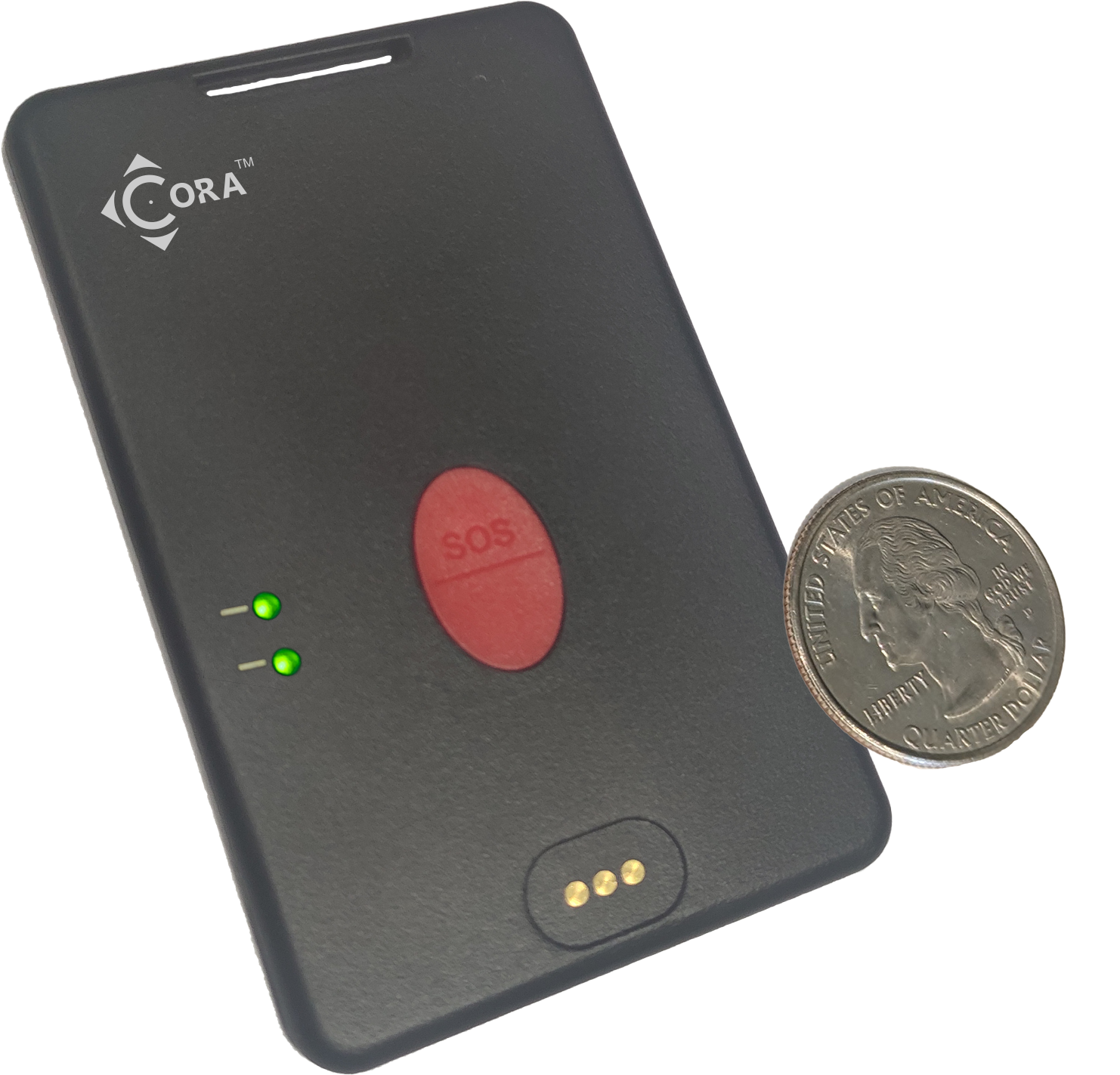

Cora™ Flex Trackers

Providing seamless 3D indoor / outdoor location for campus environments, the CT1000 breaks through the cost / performance barrier. Offering long battery-life and a credit-card sized form factor, the tag is the first generation of easily programmable tags that can be readily adapted to a variety of people and thing tracking applications.

Powered by CP-Flex platform™, solution providers can create easy to learn applications scripts enabling the device to match their application interface protocol requirements or select from a set of existing applications provided in the Cora CT1000 SDK. Solution providers can control the behavior of the CT1000, optimizing the device for their particular needs without re-certification or the learning curve typical of embedded firmware.

Key Features

  • LoRaWAN Class A/C communication
  • Wi-Fi / BLE based 3-D positioning
  • 6,000 locates per charge: 60+ days at 100 locates per day
  • 1MB message caching when out of network
  • 3-axis vibration, shock, and impulse detection
  • Temperature sensor
  • Water / Shock resistant: IP67 compliant
  • Small size – equivalent to security badge.
  • 3.38 x 2.13 x 0.20 inches ( 85 x 54 x 5 mm)
  • 48K Flash / 4K RAM application scripting engine
  • 2 Configurable buttons [CT1000 only]
  • 2 Multi-color LEDs indicate status
  • Rechargeable Li-ion battery
  • Magnetic charging contacts

Specifications

  • LoRa Protocols: LoRaWAN Class A/C
  • Cora platform compatible
  • Color: Black/Red (other colors can be custom ordered)
  • Dimensions (L x W x D): 3.38 x 2.13 x 0.2 inches (85 x 54 x 5 mm)
  • Two (2) programmable, multi-color LEDs (left of buttons)
  • Two (2) programmable, buttons
  • Magnetic connect charging port (USB 5V)
  • 400 mAmp-Hr Li-Ion Rechargeable Battery
  • WiFi: 2.4 GHz Scanning / Data Communications (custom firmware)
  • BLE: 2.4 GHz Scanning / Data Provisioning
  • LoRa: U.S. 923 MHz, E.U. 868 MHz, China 470 MHz, and other frequencies available
  • OTA Updates via BLE or LoRa
  • 32 KB Flash / 4KB RAM programmable CP-Flex application (Pawn script) environment. Deploy standard or customized applications without requiring re-certification of the tag.
  • Environmental:
    • Operating Temperature Range: 32°F – 122°F (0°C – 50°C)
    • Operating Humidity Range: < 100% non-condensing

Applications

The CT1000 is ideal for near real-time location tracking applications that are event driven. The tag can wake on a variety of events, collecting and reporting location, temperature, and other information. Supporting Codepoint’s Flex platform, solution providers can choose from existing apps or create their own to meet specific requirements.

layout styles

At Work and Home

  • Hotel staff safety management
  • Workplace security / activity monitoring
  • Warehouse Logistics
  • Smart Home/Building

Around Town

  • Asset tracking for medical, warehouse, and campus logistics
  • Equipment Locator
  • Family Safety Net
  • Pedestrian Vehicle Recovery
style switcher
layout styles

Across the Nation

  • Shipment Verification
  • Movement Detection
  • Infrastructure Monitoring
  • Trip Logging
