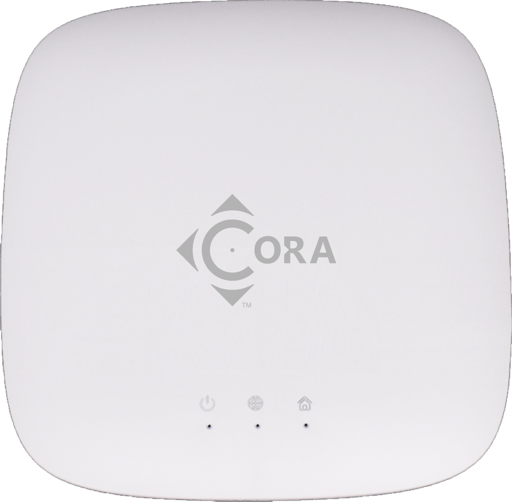

Cora™ CG1000 Coralink Gateway
Gateway connects Coralink based devices to Cora Cloud Services. Gateway can be managed remotely.
Key Features
- WiFi (2.4 GHz) or Ethernet network connection
- Straightforward plug and play initial setup.
- Large coverage area: typical 300 to 500 meters radius
- Supports 300+ sensor devices per gateway
- Cora Wireless Cloud Stack Compatible
- Samples available now
Specifications
- LoRa Protocols: Coralink Class A/C/D
- Frequency, LoRa: Region 923.3 MHz
- Frequency, Wi-Fi: 2412 – 2462 MHz
- Color: White
- Dimensions [L x W x D]: 4.33 x 4.33 x 1.06 inches (110 x 110 x 27 mm)
-
Status LEDs (Top):
- Green power indicator
- Red feature indicator
- Blue Internet indicator
-
Ethernet Status Indicators (Rear)
- Green network speed indicator
- Yellow network speed indicator
- Set button (Rear)
- Network connector: RJ45
- Power connector: Micro-USB B
- Power: 5 Volts DC
-
Environmental:
- Operating Temperature Range: -4°F – 104°F (-20°C – 50°C)
- Operating Humidity Range: ≤ 90% non-condensing
- Intended for indoor use only
