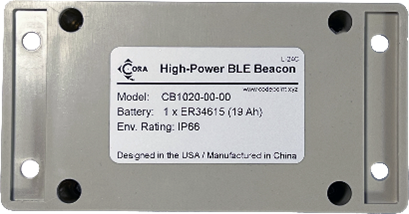

Cora CB1020 Ruggedized High Power BLE Beacon

The CB1020 is a ruggedized, high-power beacon designed for deployment in wide-open outdoor environments. With extra thick and strong ABS housing, the CB1020 is designed for punishment making it an ideal choice for applications where reliability is key. With its reliability the CB1020 can operate without maintenance or monitoring for an extended period of time.

This device is powered by one non-rechargeable ER34615 battery that can provide more than five (5) years of operation. The device meets or exceeds IP66 when mounted.

Key Features

  • Ruggedized weatherproof housing for harsh/secured environments
  • Low power technology offers five plus (5+) years of battery life
  • Can be mounted using M4 or M5 pan head screws
  • Adjustable power and transmit intervals: -20 to +20.0 dBm, 20 to 10240 msec.
  • Configurable beacon data format.
  • Magnetic activation
  • Does not require a BLE client device to activate or verify operation.
  • BLE OTA update and configuration.
  • Supports filtered scanning applications.

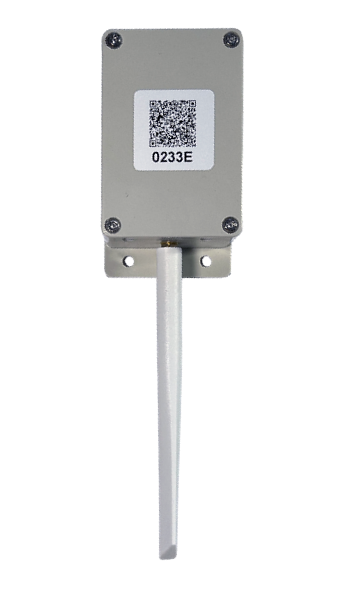

  • External Antenna

Applications

  • Reference beacon for BLE location systems.
  • Ruggedized form factor makes it ideal for commercial and other deployments that require the device to be able to withstand repeated abuse and harsh weather conditions.

Specifications

  • 2.4GHz BLE Beacon
  • Color: White
  • Dimensions (L x W x D): 5.23 x 2.67 x 2.01 inches (133 x 68 x 51 mm)
  • Mounting holes: 4 holes, 4.55 x 1.66 inches (115.69 x 42.25mm). Takes M4 or M5 pan head screws
  • ABS plastic ruggedized case
  • Power: One ER34615 non-rechargeable lithium batteries (3.6V)
  • Environmental
    • Operating temperature: -4°F – 176°F (-20°C – +80°C)
    • UV Exposure: Some UV protection, for longest life possible place device out of direct sunlight when possible
  • IP Rating: IP66 Compliant
  • External Antenna Supported
